Adapter

  • Is a Structural Design Pattern
  • Also known as wrapper pattern
  • An adapter allows incompatible interfaces to work together
  • It converts one interface into another that the client expects
Role Meaning
Client Existing code that expects some interface
Target The interface the client expects
Adaptee Existing / new / legacy class with incompatible interface
Adapter The translator between Target and Adaptee
### Class Adapter vs. Object Adapter

This is a frequent interview question. The main difference lies in how they talk to the Adaptee:

  1. Class Adapter (Inheritance): Uses Is-A relationship. It can only adapt a specific class, but it can override the Adaptee's behavior since it's a subclass.
interface Target {
    void operation();
}
class Adaptee {
    public void specificRequest() {
        System.out.println("Specific Request");
    }
}
class Adapter implements Target extends Adaptee {
    @Override
    void operation() {
        specificRequest();
    }
}

class Client {
    Adapter adapter = new Adapter();
    adapter.operation();
}
  1. Object Adapter (Composition): Uses Has-A relationship. It holds an instance of the Adaptee inside it. This is generally preferred in modern SE (like Java) because it's more flexible and follows the "favor composition over inheritance" principle.

Object Adaptor (Composition-based)

  • Adapter has an instance of adaptee
  • Adapter delegates to adaptee instance
interface Target {
    void request();
}

class Adaptee {
    public void specificRequest() {
        System.out.println("Specific Request");
    }
}

class ObjectAdapter implements Target {
    private Adaptee adaptee;

    public ObjectAdapter(Adaptee adaptee) {
        this.adaptee = adaptee;
    }

    @Override
    public void request() {
        adaptee.specificRequest();
    }
}

class Client {
    public static void main(String[] args) {
        Adaptee adaptee = new Adaptee();
        Target target = new ObjectAdapter(adaptee);

        target.request();
    }
}

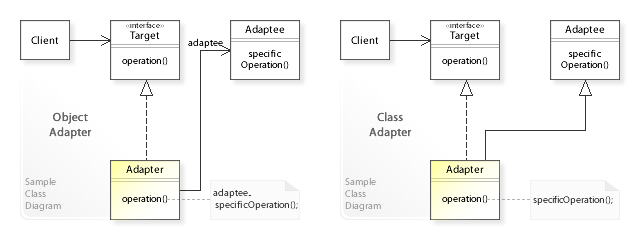

Pasted image 20260215185502.png
