Convolutional Neural Network

Why prefer CNN over ANN

Multiple parameters to calculate - More computation and space

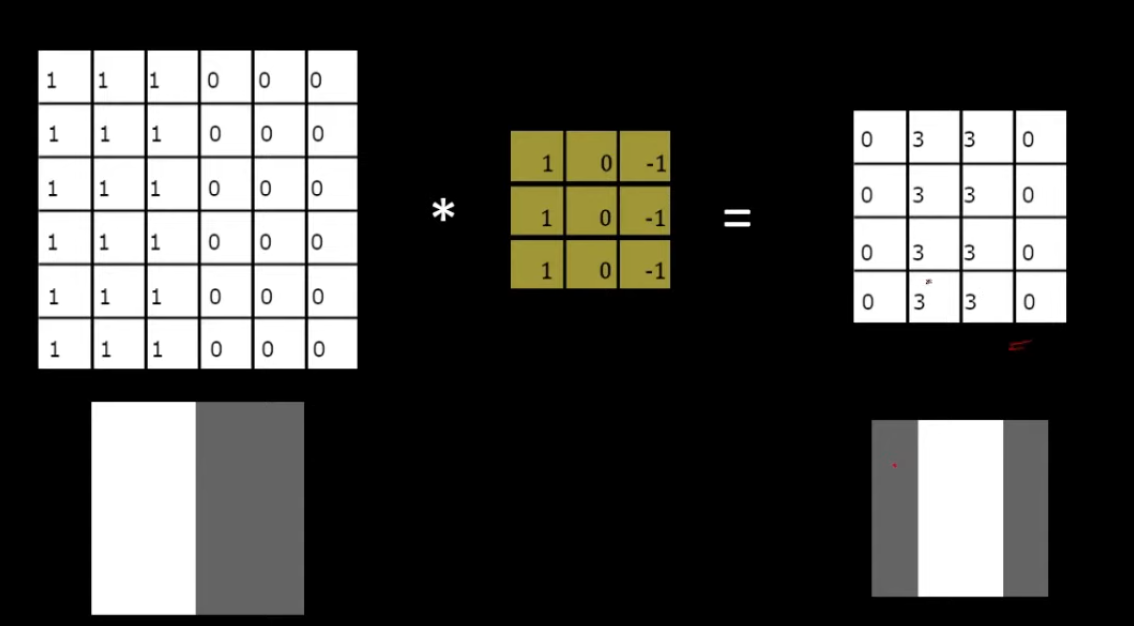

Convolutional Operation in CNN

A kernel goes over the image, whose products are summed to detect the features

$$Dim = (n - f + 1) * (n-f+1)$$

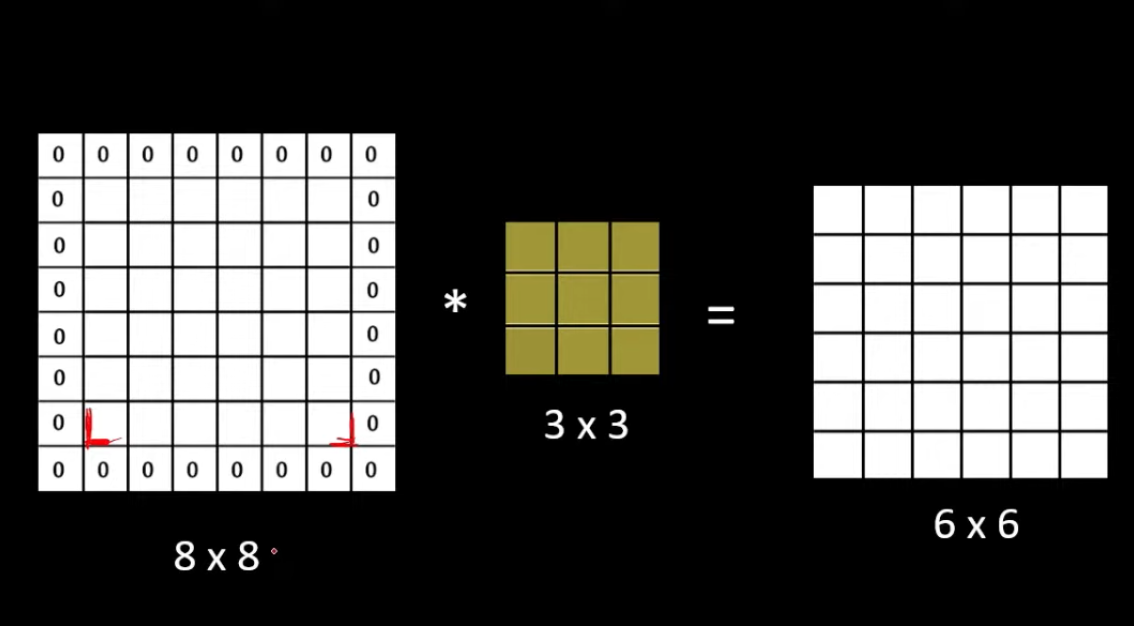

Padding in CNN

Some pixels do not get enough attention when the kernel moves over the image, so we introduce padding to the image.

1) Valid Convolution - No padding 2) Same Convolution - The output should have the same size of input image after padding

$$ \begin{aligned} n'=n+2p\ n+2p-f+1=n\ n=(f-1)/2 \end{aligned} $$

Stride in CNN

Stride determines the skips taken by kernel while moving over the image. It is used for down-sampling (reducing feature map size), improving computational efficiency

$$ Dim=(n-f)/s +1$$

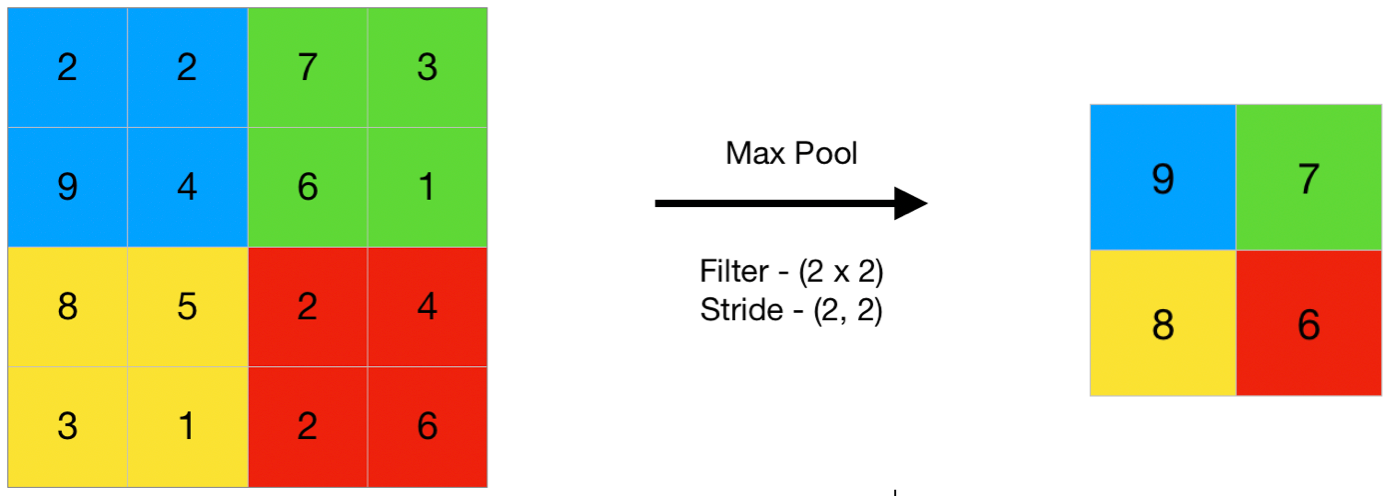

Max Pooling in CNN

Max pooling is a downsampling technique in convolutional neural networks (CNNs) that reduces spatial dimensions (height/width) by taking the maximum value from sliding windows.

1) Reduce image size, thus reduce computational cost 2) Enhances Features 3) No parameters involved, thus no training 4) Same number of channels

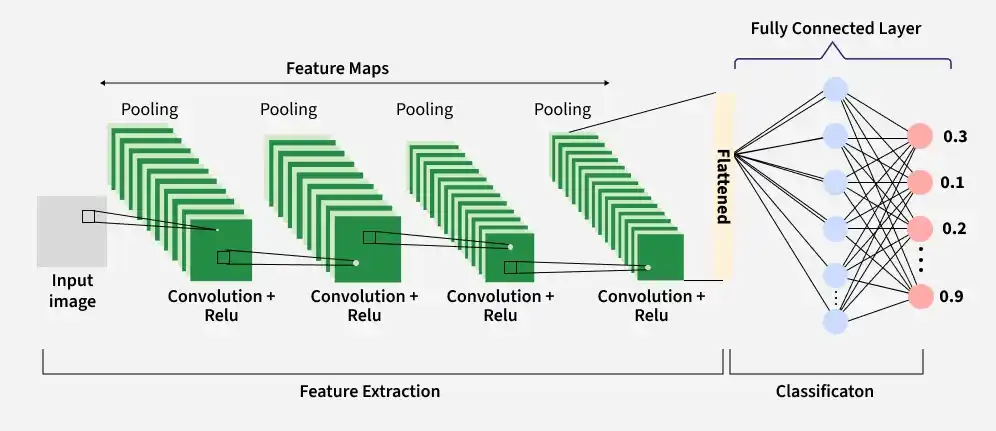

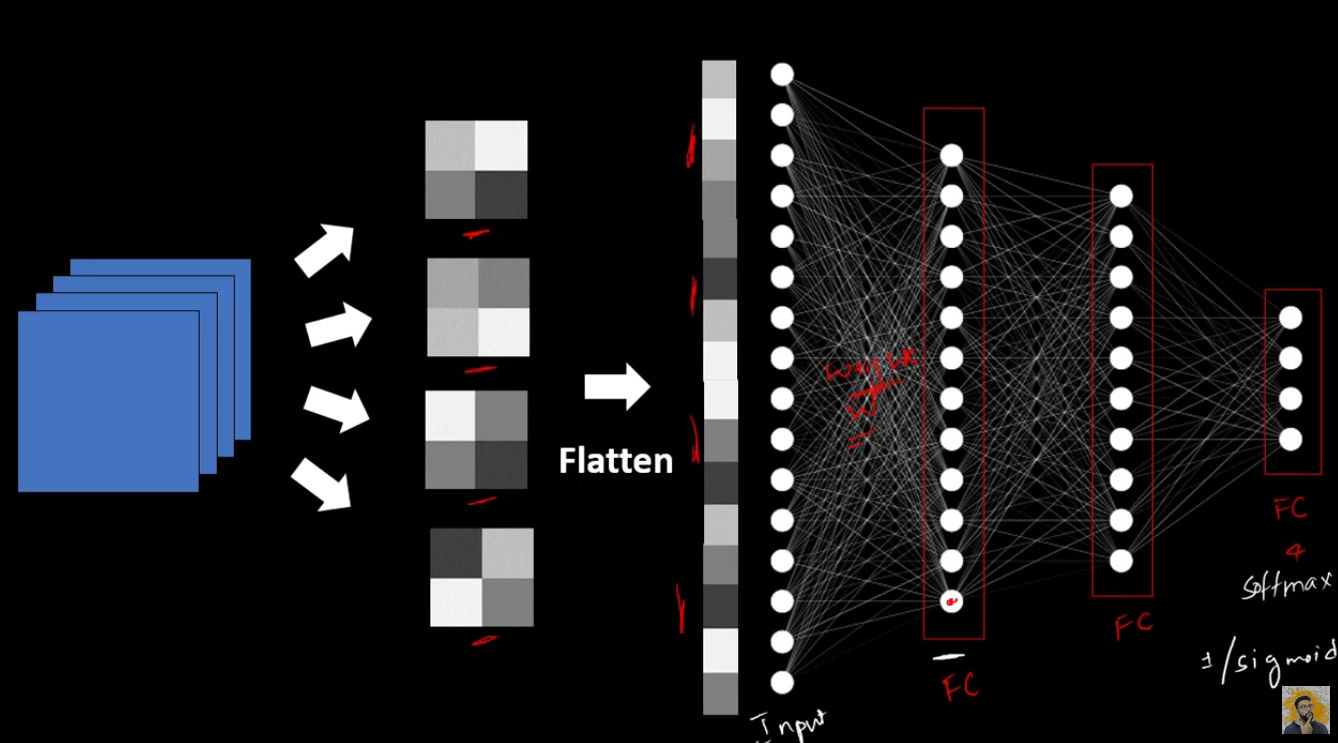

CNN Architecture

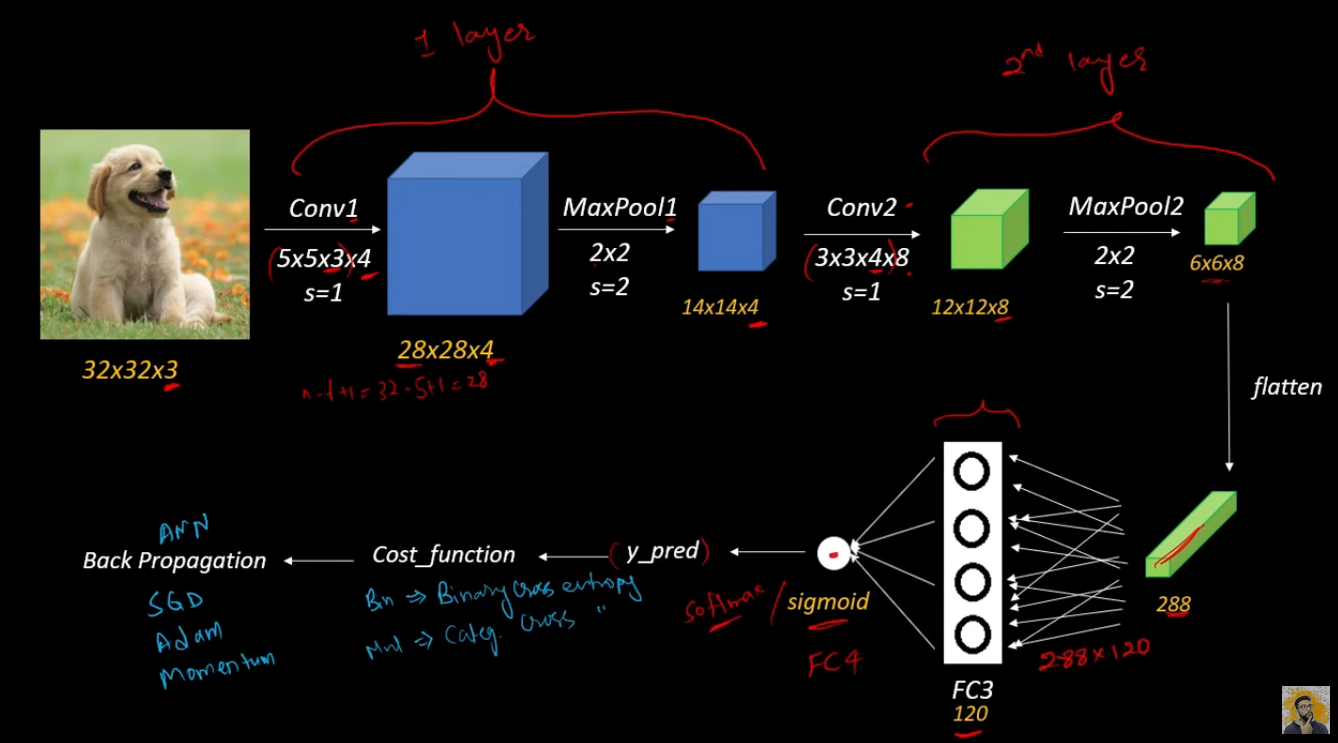

Calculating Parameters in CNN

$$\begin{aligned} Parameters=(k_wk_hCin+1)C_{cout}\ Parameters = (inout+1) \end{aligned}$$
